USING THE VIEW MENU

This is a standard Windows 95 menu that allows you to change the way you view the tasks shown in the task list. The available options are described briefly. Further information is available in your Windows 95 manual.


View Menu

LARGE ICONS

The tasks are displayed in the task list as large icons with the name under each icon.

In addition to choosing the Large Icons item from the View menu, you can also access this item by selecting this button from the toolbar.

SMALL ICONS

The tasks are displayed in the task list as several columns of small icons with the task name alongside each icon.

As an alternative to using the Small Icons item in the View menu, you can access that item by selecting this button from the toolbar.

LIST

The tasks are displayed in the task list as a single column of small icons with the task name alongside each icon.

In addition to using the List item on the View menu, you can also access it by selecting this List button from the toolbar.

DETAILS

The tasks are displayed in the task list as a single column of small icons with the name alongside each icon and a column for the results of the last scan and the time of the next scheduled scan.

Selecting the Details button causes the task list to display with small icons. The results of the last scan (if a virus was found) and scheduled scan information is displayed next to each icon. The Details menu item can also be accessed by choosing it directly from the View menu.

REFRESH

Selecting the Refresh item updates the task window to reflect the FPT (Command AntiVirus Task) files on the disk.

USING THE PREFERENCES MENU

The Preferences menu is one of the key areas for cutomizing Command AntiVirus. You can access this menu either by highlighting and clicking on the menu title or by pressing ALT + P. Each menu option will be explained in the following pages.


Preference Menu

Through the Network menu item, you are able to set up messaging via your e-mail system and modify interaction with NetWare if you are running Command AntiVirus for NetWare.

The Reporting selection allows you to decide on available options for virus notification.

Active Protection opens a dialog box where you can enable/disable and configure real-time protection for both DOS and Windows sessions. Additionally, you can select which areas of memory are scanned for viruses when the operating system is loaded.

There is also a menu command for Files to Include/Exclude which can be very helpful for specific scans.

NETWORK

The Network options allow you to set up messaging to your network. If you are running NetWare, there is a special section for configuring scan options, that is designed to work with Command AntiVirus for NetWare (CSAV).


Network Menu

NetWare

When the NetWare tab is selected, a dialog box will open which allows you to configure the following items.

Preserve last access date

Selecting this option will prevent modification of the access date on the file. Many backup systems reference the last backup date.

Skip compressed files

Compressed files are files that have not been accessed for a period of time, perhaps weeks or months. If the file was compressed after an initial scan with Command AntiVirus, it is unlikely that it contained a virus. You can shorten scan times by checking this box. We advise that you check compressed files once when Command AntiVirus is first installed and then again with every major update of the product.

Skip migrated files

As migrated files are not in use (by definition), you can shorten scan times by checking this box. Migrated files should be checked once when CSAV is first installed and again before using them.

Log infection

If you are running Command AntiVirus for NetWare, you can select this box. CSAV maintains a log file on each server. From within this box, choose a valid server name from the drop-down list box. Afterward, if a virus is discovered, it will be added to that server's Command AntiVirus log file. Use a text editor or the View option in CSAV for NetWare, to look at the log.

Messaging

The Messaging menu allows you to modify the message shown to network users when a virus is encountered.


Messaging Menu

Message to display

You can enter a text message of your choice up to 80 characters in length. This is very useful for Network administrators and may include phone numbers or other helpful messages.

E-mail

This area controls notification using your existing e-mail system.

Addresses

Choose Addresses to select who will receive the messages.

Mail report

Select this box to have a virus report mailed to the address selected in Addresses.

Mail infected files

Select this box to have the infected file mailed to the address selected in Addresses.

REPORTING

The Reporting screen controls how the scan results display for report purposes, and allows you to choose whether or not to have an audible warning.


Reporting Menu

Beep When A Virus Is Found

The PC speaker will emit a short beep when a virus is found, during any scan, if this item is selected.

List All Files Scanned

You may want to avoid lengthy reports by not selecting this box. However, this provides the ability to verify that the appropriate files are being scanned.

Wrap Text In Report Window

It may be easier to read short reports if you select Wrap text in report window. In longer reports, you may find it easier to find individual file listings without wrapping the text.

ACTIVE PROTECTION

Real-time virus protection for Windows 95 (DVP) and DOS are configured in this section.

Dynamic Virus Protection

This dialog box allows modification of the Dynamic Virus Protection (DVP) program. DVP provides real-time protection against viruses by scanning the boot sector every time a floppy is read and scanning every program file prior to execution.


Active Protection Menu

Enable DVP

This box must be selected for active virus protection to function. You can choose to scan floppy drives, local hard drives and/or network drives.

What to scan

You make DVP active and decide what drives it should scan by selecting any of the choices listed.

Action on infection

You can select any one of the options listed below.

Report only

This option will inform you when a virus is detected but no other action will be taken. You can choose the report only option in order to verify the type of virus before disinfection.

Delete

This option automatically deletes virus-infected files.

While this is a powerful option, the potential exists for loss of data. Some rare viruses perform encryption on the hard drive that can make file recovery difficult.

Rename

This option automatically renames virus-infected files. It changes the file name extensions to a none-executable form.

Disinfect

This option automatically disinfects virus-infected files. Please note the caution for Delete.

Remove all macros is a variant is found

If this option is selected, all macros are removed from any file containing a new or modified variant of a macro virus. If this option is not selected and the Action to Take is Disinfect or Disinfect/Query, files containing remnants or are variants of macro infections are renamed.

This option is available only when the Action to Take is Disinfect or Disinfect/Query.

When a virus is found

These options specify what will happen when a virus is found.

Prompt before denying access

When this option is enabled, an attempt to access an infected file results in a dialog box asking the user whether the attempt should continue.

If Prompt Before Denying Access is selected, executing or accessing the infected could result in the further spread of the virus.

Automatically denying access

Automatically denying access will not allow an infection to spread.

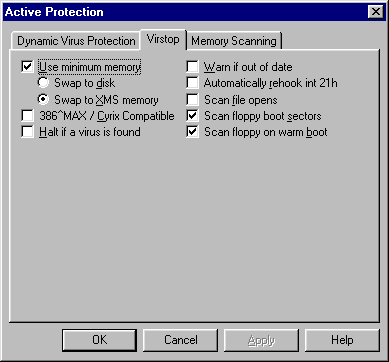

Virstop

Virstop provides real-time protection when you boot to MS-DOS mode (not in an MS-DOS window) and can be configured in this menu.


Virstop Menu

Use minimum memory

This option forces Virstop to swap the temporary virus signature file (approximately 30K) to the disk or to XMS memory, depending on which option you select.

386^Max/Cyrix compatible

If you are using 386^MAX memory management or a Cyrix microprocessor, check this box.

Halt if a virus is found

Selecting this box will cause the system to lock up when a virus is found. This is intended to force a user to disinfect before continuing.

Warn if out of date

This option notifies the user that the virus signature files are out-of-date and should be updated for continued protection against newer viruses.

Automatically rehook int21h

When Virstop is loaded, it hooks int21h. If this occurs before logging on to a network, the network driver may take over this connection. If you check this box, Virstop will automatically rehook in order to continue protection.

Scan file opens

Selecting this box will cause Virstop to scan every executable file that is opened.

Scan floppy boot sectors

Checking this box will cause Virstop to scan the boot sector of a floppy every time it is accessed.

Scan floppy on a warm boot

When this option is selected, pressing Ctrl+Alt+Del causes Virstop to scan the boot sector of any floppy in drive A prior to reloading the system.

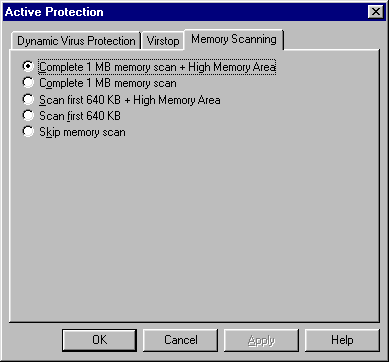

Memory Scanning

We recommend scanning memory whenever you boot your system. Some systems have video problems when Upper Memory Blocks or High Memory is scanned, so we provide various scan options. Memory scanning can also be disabled entirely, but this is not recommended.


Memory Scanning Menu

Complete 1MB memory scan + High Memory Area

Choosing this option provides the most comprehensive memory scan and includes the first 64 KB above 1 MB. Some viruses take advantage of this area and, if you scan only the first 640 KB or 1 MB, you run the risk of infection. Command AntiVirus has this option selected by default. If you experience lock-ups, try the Complete 1MB memeory scan option.

Complete 1MB memory scan

Choosing this provides a thorough scan of the first 1MB of memory, which includes the video area above 640KB. If you experience lockups, use the 640K + High Memory option.

Scan first 640k + High Memory Area

Scan conventional memory plus the High Memory Area, which is the first 64KB above 1MB. This option avoids scanning areas which may have conflicts with some high-resolution video drivers, and some Micro Channel network cards.

Scan first 640KB

This option scans only convention memory.

Skip Memory Scan

This is the fastest way to boot. Remember, selecting this option could allow a virus to remain active in memory if you have disabled some of the other detection features.

FILES TO INCLUDE/EXCLUDE

These two screens allow you to enter and delete file extensions to be scanned (included) or not scanned (excluded). Extensions entered here apply to all scan tasks.

Files to Include

If you want to add a specific type to your scans, type that file's three-letter extension in the New Extension text field and select Add. To remove a particular file type from your scans, locate its three-letter extension in the Filename extensions list box. Then, highlight the extension you want to remove and select Delete.


File Extensions Menu

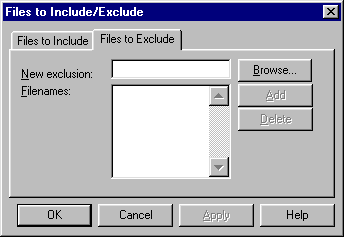

Files to Exclude

To exclude a specific file from a scan, use the Browse button to locate the file, or you can type the file's full name and extension in the New exclusion text field. Then choose Add. To remove a file, highlight it in the Filenames list box and select Delete.


Files to Exclude Menu

The exclusion ability is helpful when you want to scan files that have the same extension but you want to exclude one or more specific files that use that same extension.

Wildcards are not accepted. If only an extension is entered in the New Exclusion text field and that extension is also in the Files to Include list, then files of that type will be scanned. To prevent all files of a specific type (all .DOC files for example) from being scanned, you must remove that extension from the Files to Include list.

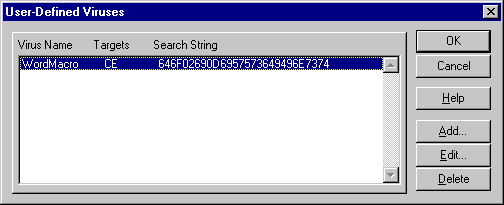

USER-DEFINED VIRUS STRINGS

This dialog box allows you to add, change or delete specific search strings that will be part of the search criteria during the scan.

This option is useful when a new virus warning is posted and you have not yet had time to obtain a virus signature update. Should you ever need to use a User-Defined search string, be sure you have a check in the User-Defined virus strings check box, located in the Properties window.


User-Defined Virus Strings Menu

The example shown above demonstrates how this capability could be used to detect a macro virus.

HELP MENU

General help for Command AntiVirus for Windows 95 can be found on this menu.


Help Menu

INDEX

The Index is a handy cross-reference tool for help information.

USING HELP

This menu item gives basic instructions for effectively using the help system.

TECHNICAL SUPPORT

This menu item provides phone numbers and electronic methods to obtain technical support.

PERFORMANCE

This menu item provides information regarding the number or viruses detected by Command AntiVirus for Windows 95.

VIRUS INFORMATION

This menu item provides detailed information on several hundred common virus families and variants.

ABOUT COMMAND ANTIVIRUS FOR WINDOWS 95

The version number and copyright information can be found by selecting this toolbar button. That information is also located in the Help menu.
